SITE: towards

Spatial Intelligence Thorough Evaluation

Wenqi Wang1, Reuben Tan2, Pengyue Zhu1, Jianwei Yang2,
Zhengyuan Yang2, Lijuan Wang2, Andrey Kolobov2, Jianfeng Gao2, Boqing Gong1,
1Boston University, 2Microsoft Research
(To appear at ICCV 2025)
arXiv Code

🤗

 Dataset

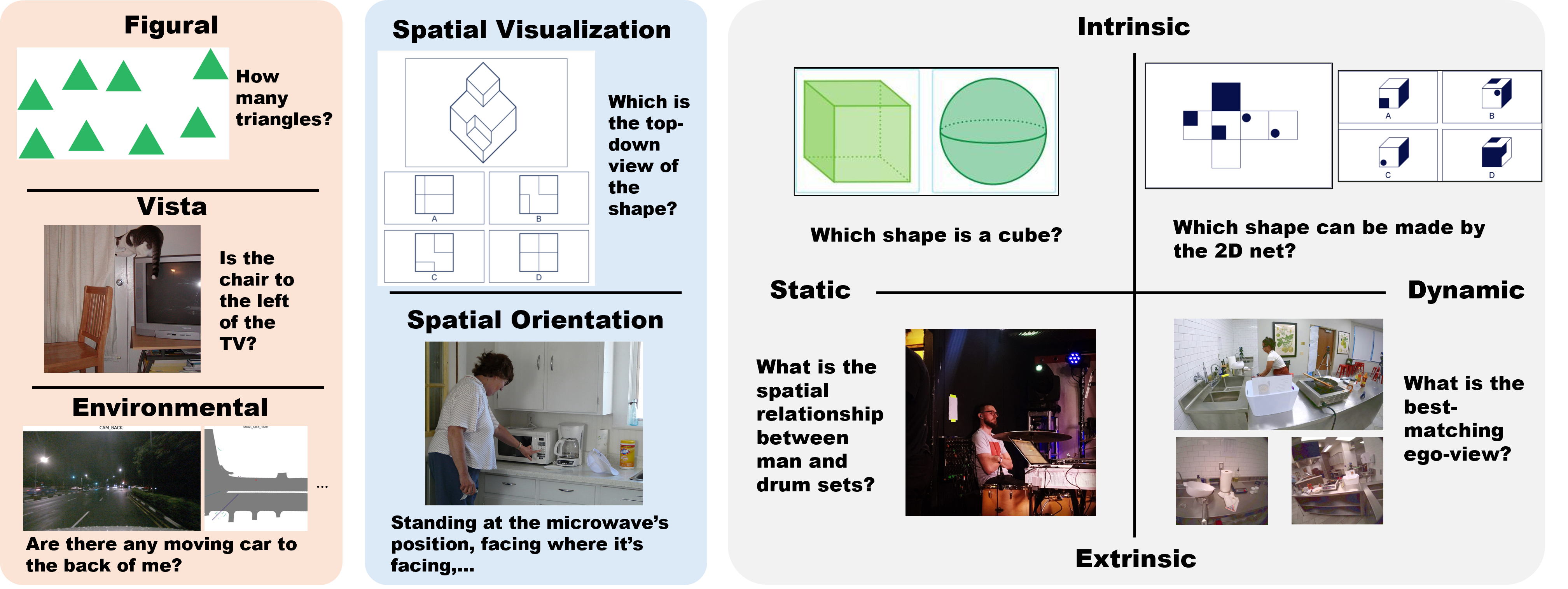

teaser figure

We introduce SITE, a comprehensive benchmark for evaluating large vision-language models' spatial intelligence (SI). Three SI classification systems drawn from cognitive science, corresponding to the three panels, drive the design of SITE.

Introduction

Spatial intelligence (SI) represents a cognitive ability encompassing the visualization, manipulation, and reasoning about spatial relationships, underpinning disciplines from neuroscience to robotics. We introduce SITE, a benchmark dataset towards Spatial Intelligence Thorough Evaluation in a standardized format of multi-choice visual question-answering, designed to assess large vision-language models's spatial intelligence across diverse visual modalities (single-image, multi-image, and video) and SI factors (figural to environmental scales, spatial visualization and orientation, intrinsic and extrinsic, static and dynamic). Our approach to curating the benchmark combines a bottom-up survey about 31 existing datasets and a top-down strategy drawing upon three classification systems in cognitive science, which prompt us to design two novel types of tasks about view-taking and dynamic scenes. Extensive experiments reveal that leading models fall behind human experts especially in spatial orientation, a fundamental SI factor. Moreover, we demonstrate a positive correlation between a model's spatial reasoning proficiency and its performance on an embodied AI task.

Leaderboard on SITE benchmark

Chance-Adjusted Accuracy* scores on the (8,068 examples) SITE benchmark.

Model Overall Count Loc 3D Inf MultiV Rel Mov
Random 0.0 0.0 0.0 0.0 0.0 0.0 0.0
Tiny Subset
Human 67.5 66.0 83.3 54.7 87.5 73.0 52.5
InternVL-2.5-8B 34.3 48.5 46.8 9.32 8.51 45.6 23.7
GPT-4o 35.6 42.4 51.2 11.0 17.8 42.7 19.5
Open-source
InternVL-2.5-8B 32.8 47.1 37.0 23.2 9.05 47.6 28.7
Qwen2.5-VL-7B 31.4 52.6 44.1 9.42 1.08 51.5 18.9
LLAVA-OV-7B 30.2 51.8 38.5 22.4 9.40 55.3 9.18
Qwen2.5-VL-3B 29.5 45.6 37.5 13.2 7.14 45.6 18.8
InternVL-2.5-4B 29.4 47.9 32.9 11.4 3.94 47.2 22.9
Phi-3.5-Vision 21.8 33.2 34.0 11.7 3.33 32.8 11.7
LLAVA-OV-0.5B 18.4 28.0 32.3 5.67 3.77 30.6 4.70
Proprietary
GPT-4o 37.8 44.6 56.0 26.9 22.0 54.6 18.4
Gemini-1.5-Pro 32.5 48.0 45.8 25.3 5.33 48.8 18.4
Human Performance: Average human performance on a tiny subset (300 samples) from annotators.
Chance-Adjusted Accuracy*: Subtract the chance level from the raw accuracy score so that 0 means "just chance" and 1 means "perfect".
Spatial Intelligence Categories: Count: Counting and Existence, Loc: Localization and Positioning, 3D Inf: 3D Information Understanding,
MultiV: Multi-View and Cross-Image Reasoning, Rel: Spatial Relationship Reasoning, Mov: Movement Prediction and Navigation

🚨 To submit your results to the leaderboard, please send to this email with your result json files.

Examples

Two example for each spatial intelligence category.

New Tasks

view association

Ego-Exo view association tasks. The goal of this task is pick the correct exocentric view given the egocentric view of a visual scene or vice versa.


frame reeordering

Ego-Exo frames reordering tasks. Given the start and end frames of a video clip in an egocentric view, and four randomly shuffled frames from the same clip in exocentric views, the model is tasked with reordering the four shuffled frames into their correct temporal sequence (or vice versa).

Statistics

context

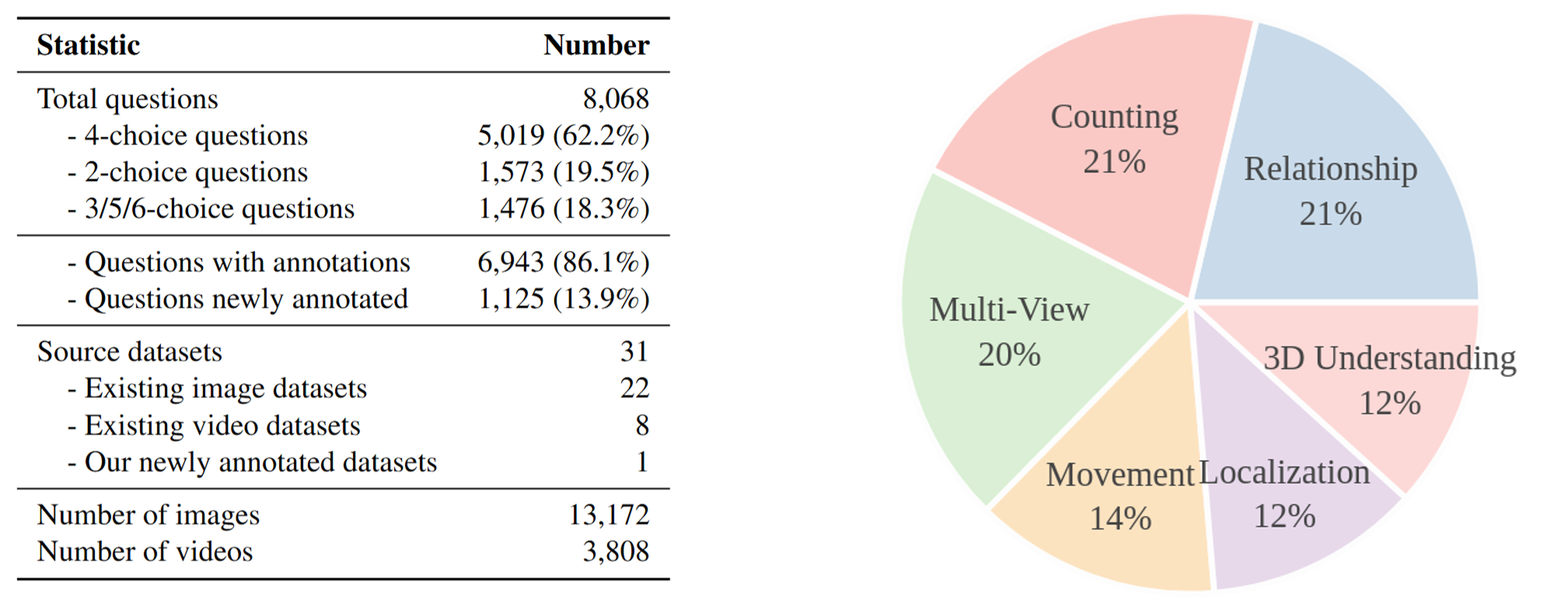

Left: Import statistics of SITE benchmark.
Right: Our final benchmark category distribution.

context

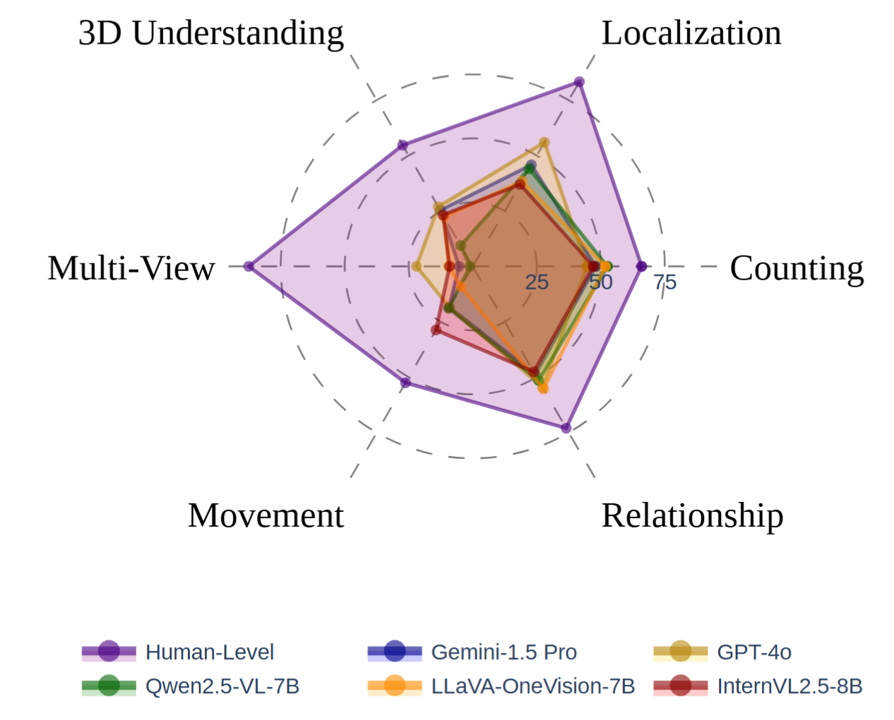

Different models's performance in a glance.

Comparison

context

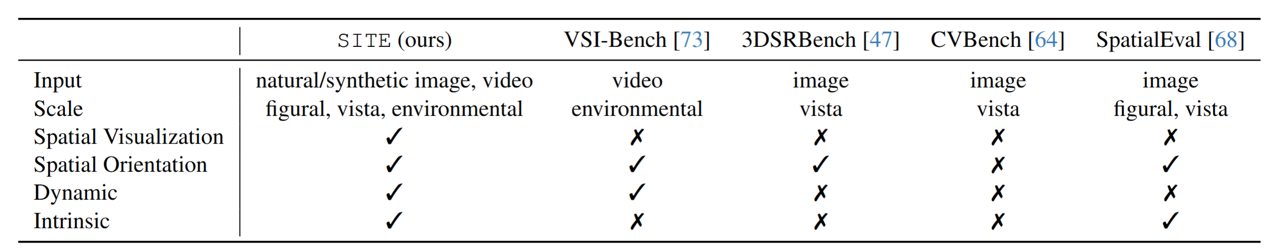

SITE vs. similar efforts on benchmarking spatial intelligence.

context

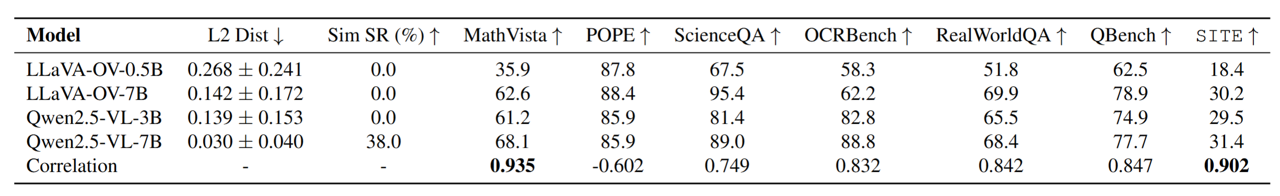

Correlation between different benchmarks and robotics manipulation on Libero Spatial. To assess the downstream utility of our benchmark in embodied tasks, we collect performance scores from four vision-language models—Qwen2.5-VL and InternVL-2.5 series—across various benchmarks, along with their corresponding performances on LIBERO-Spatial when used as VLA backbones. The bold numbers show a higher correlation.

BibTeX

@misc{wang2025sitespatialintelligencethorough,
      title={SITE: towards Spatial Intelligence Thorough Evaluation},
      author={Wenqi Wang and Reuben Tan and Pengyue Zhu and Jianwei Yang and Zhengyuan Yang and Lijuan Wang and Andrey Kolobov and Jianfeng Gao and Boqing Gong},
      year={2025},
      eprint={2505.05456},
      archivePrefix={arXiv},
      primaryClass={cs.CV},
      url={https://arxiv.org/abs/2505.05456},
}
